- ADA L shape folding shower seat details -

ADA folding shower seat dimensions

Folding shower seat specifications:
Our folding shower seats are constructed to meet ADA specifications. Phenolic slats are 3" wide x 1/2" thick. One piece plastic tops are 1/2" thick. Stainless steel tops are 14 gauge. Seat frames are 1" x .065 wall stainless steel tube. Overall dimensions are 32" x 23" when installed including 1-1/2" space between the seat and wall mounting. The seat extension can be inserted for both left and right hand applications, or removed for a rectangular seat, and replacing it with the supplied decorative plastic plugs. Weight capacity is 300 lbs. when properly installed.

Folding shower seat models:

  • Model #212 - one piece white plastic top.

ada handicap shower seat white-212

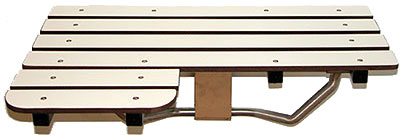

  • Model #229 - ivory phenolic slated top.

ada handicap shower seat ivory-229


  • Model #234 - wood grain phenolic slated top.

ada handicap folding shower seat woodgrain-234

  • Model #202/203 - one piece stainless steel top. (#202 right hand shown).
    #202 stainless steel top ADA right hand folding shower seat


Folding shower seat mounting instructions:

Adequate wall support is absolutely necessary! Installation of the wall mounted folding shower seat requires wood blocking in a typical stud wall. We suggest installing continuous 2 x 12 wood blocking between the studs, starting from the floor plate up to at least 24 inches above the shower floor.

With the top of the seat 18" above the floor, make sure that the top of the seat is level and mount the wall flanges. Keep the seat level, mount the wall plate (dimples up) and bracket with the diagonal leg supporting the seat in the folded down position.
